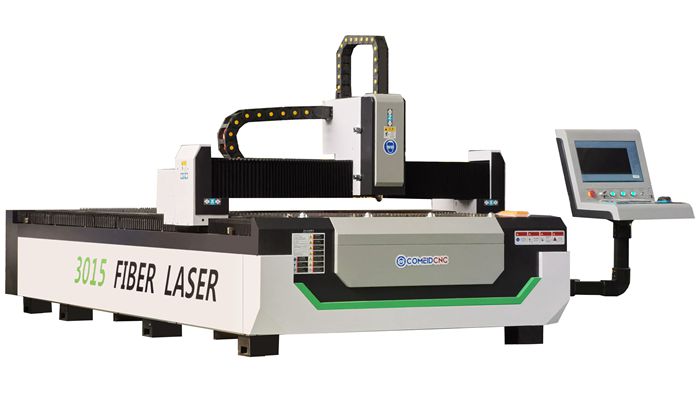

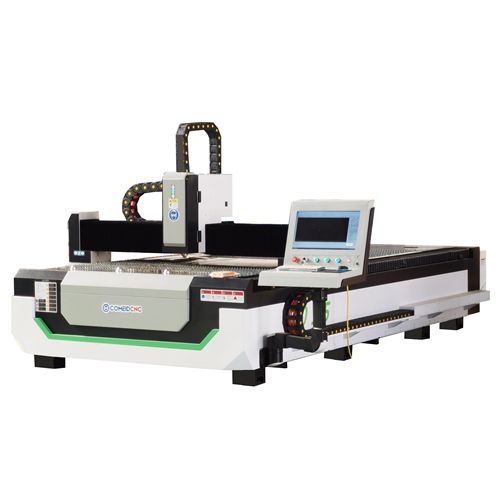

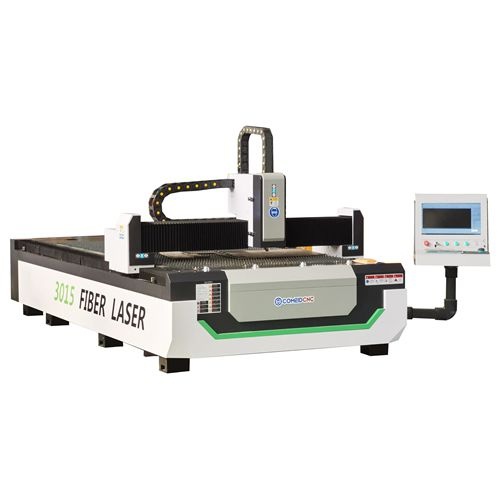

Fiber Laser Cutting Machine



1.Excellent Laser Beam Quality: Fiber laser has smaller focus diameter and high work efficiency,high accuracy and cutting quality.
2.High Cutting Speed: cutting speed is more than 20M/min.
3.Stable Running: adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4.High Efficiency for Photoelectric Conversion : Compare with CO2 laser cutting machine ,fiber laser cutting machine have 3 times photoelectric conversion efficiency.
5.Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%.Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6.Free of Maintenance: Fiber optical transmission, fiber line transmission, no need reflect lens,without optical adjustment, save maintenance cost.
7.Easy Operations: fiber line transmission, no adjustment of optical path;
8.Super Flexible Optical Effects: compact design, compact and easy to flexible manufacturing requirements.

Technical parameters



Model

fiber laser cutting machine

Laser Power

1500W/2000W/3000W/6000W

Laser Source

Raycus or MAX Laser Fiber Laser Source

Laser Type

Imported Fiber Laser or Top Brand China Fiber Laser

Laser Technology

Germany Technology

XYZ Working area

1500*3000*150mm

Max. Cutting Thickness (CS)

1mm - 15mm

Max. Cutting Speed

5-15 Meters / Min (up to materials)

Max. Location speed

60m/min

Laser wavelength

1070nm

Minimum line width

≤0.1mm

Location precision

≤±0.05mm

Re-location precision

±0.02mm

Max. moving speed

100m/min

Supporting Format

PLT, DXF, BMP, AI

Power demand

380V/50Hz

Cooling Way

Water Cooling

Worktable max. load

3000KGS

Transmission Method

Ball Screw Transmission

Table-driven system

Japanese Imported  Servo Motor & Driving System

Focus Method

Following and Automatic Adjust Focus

Control software

Perfect Laser Professional Laser Cutting Software

 Key word

cnc fiber laser cutting machine

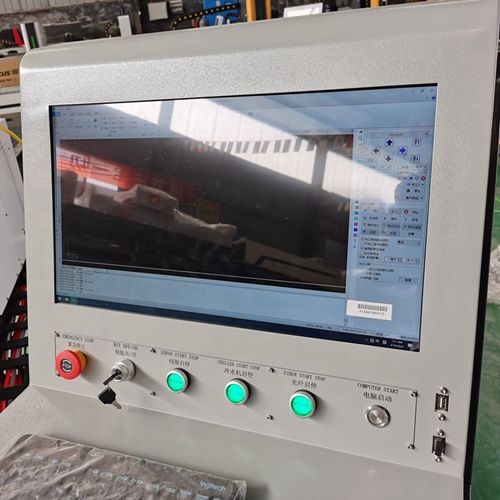

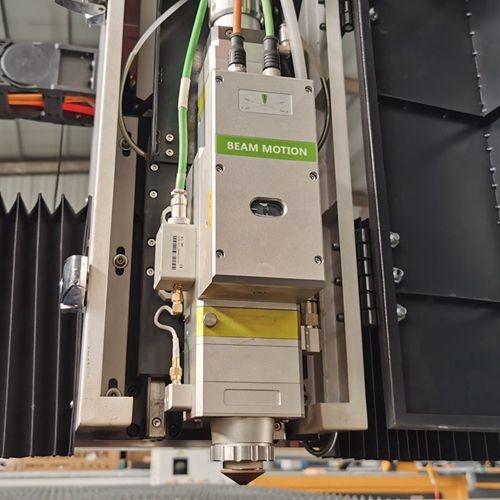

Detailed Images



Product Uses

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing .
